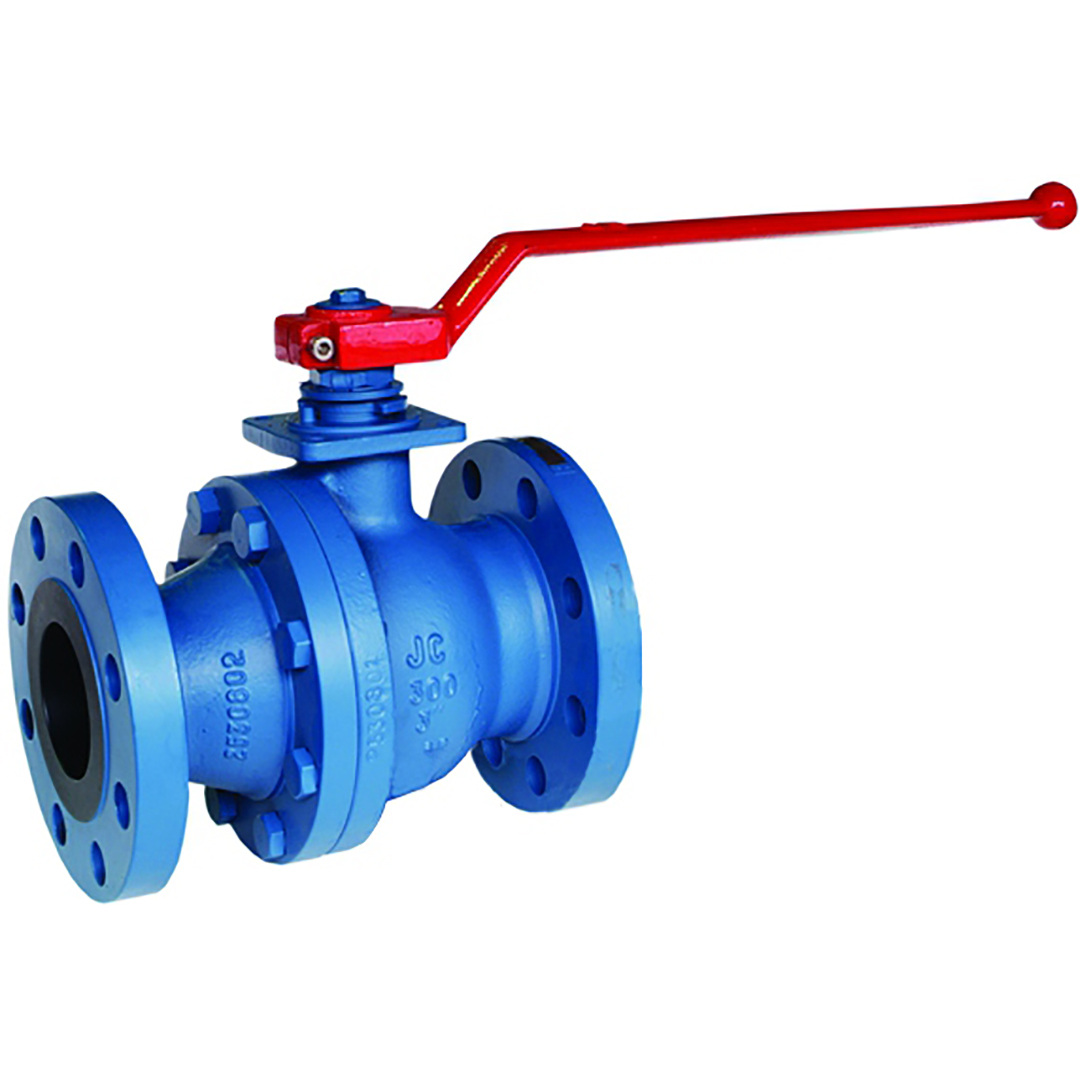

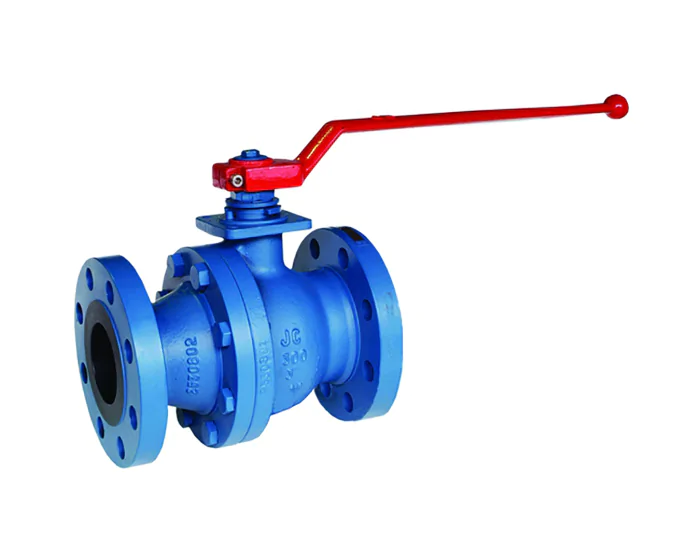

The 2-piece body steel ball valve Series 530AIT Split Body JC with full bore for fluid shut-off in chemical and pharmaceutical systems,... .
| Specification | Value |
|---|---|
| DN inches NPS | 1/2'' |
| Option certificate 3.1 | Yes |
| Construction standard | EN 1983 - ISO 17292 - ASME B16.34 - API 6D |
| NACE MR0175 | Yes |
| Fire safe standard | ISO 10497:2004. API 607 V5. API 6FA. BS 6755-2 |
| SIL | SIL 3 |
| EN face-to-face standard | EN 558 Series 4 |
| ASME face-to-face standard | ASME B16.10 |
| Brand | JC VALVES |
| Antistatic device | Yes |
| Steam | Yes |
| Degassing hole | Yes |
| Opening device | Handle |
| Fugitive emissions standard | ISO 15848-1 Class B. TA LUFT VDI 2440 |
| Application | Industry |
| Square, star (mm) | MEP M12x9 |
| ATEX compatible | Yes |
| Torque (Nm) | 12 |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 140.0 |
| Fluid | Hydrocarbons. gas |
| Kv (m³/h) | 20 |
| Body material | Carbon steel A216 WCB (1.0619) |
| Number of ways | 2 |
| Bore | Full |
| ISO pad 5211 | Yes |
| Packing gland | Yes |
| PS (bar) | 50 |
| Connections | Flanged #300 PN50 |
| Seats | PTFE |
| Ball material | Stainless steel ASTM A479 Tp 316 |
| TS max (°C) | 230 |
| TS min (°C) | -29 |
| Ball valve design | Split body |
| ATEX zone | 1 & 21. 2 & 22 |
| Warranty period | 5 years |
| CE | Yes |
| Main product colour | Blue |
| Handle material | Ductile iron |
| Handle type | Red lever |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full Split body DN15 - 1/2'' | 530AIT015 | S1006967 |
€146.90
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full Split body DN20 - 3/4'' | 530AIT020 | S1006968 |
€169.83
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full Split body DN25 - 1'' | 530AIT025 | S1006969 |
€193.79
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full Split body DN40 - 1''1/2 | 530AIT040 | S1006970 |
€291.71
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full Split body DN50 - 2'' | 530AIT050 | S1006971 |
€350.06
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full Split body DN80 - 3'' | 530AIT080 | S1006972 |
€678.24
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full Split body DN100 - 4'' | 530AIT100 | S1006973 |
€1,058.53
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full Split body DN150 - 6'' | 530AIT150 | S1006974 |
€2,433.77
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full Split body DN200 - 8'' | 530AIT200 | S1006975 |
€5,318.69
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full Split body DN250 - 10'' | 530AIT250 | S1006976 |
€8,287.50
(excl. btw)
|
add to cart |
| Flanged #300 PN50 Carbon steel A216 WCB (1.0619) Full Split body DN300 - 12'' | 530AIT300 | S1006977 |
€14,945.91
(excl. btw)
|
add to cart |
